WARNING: Observe SRS system precautions, see SRS PRECAUTIONS.

Switch off ignition, disconnect negative and then positive cables from battery.

CAUTION: Wait for at least 3 minutes.

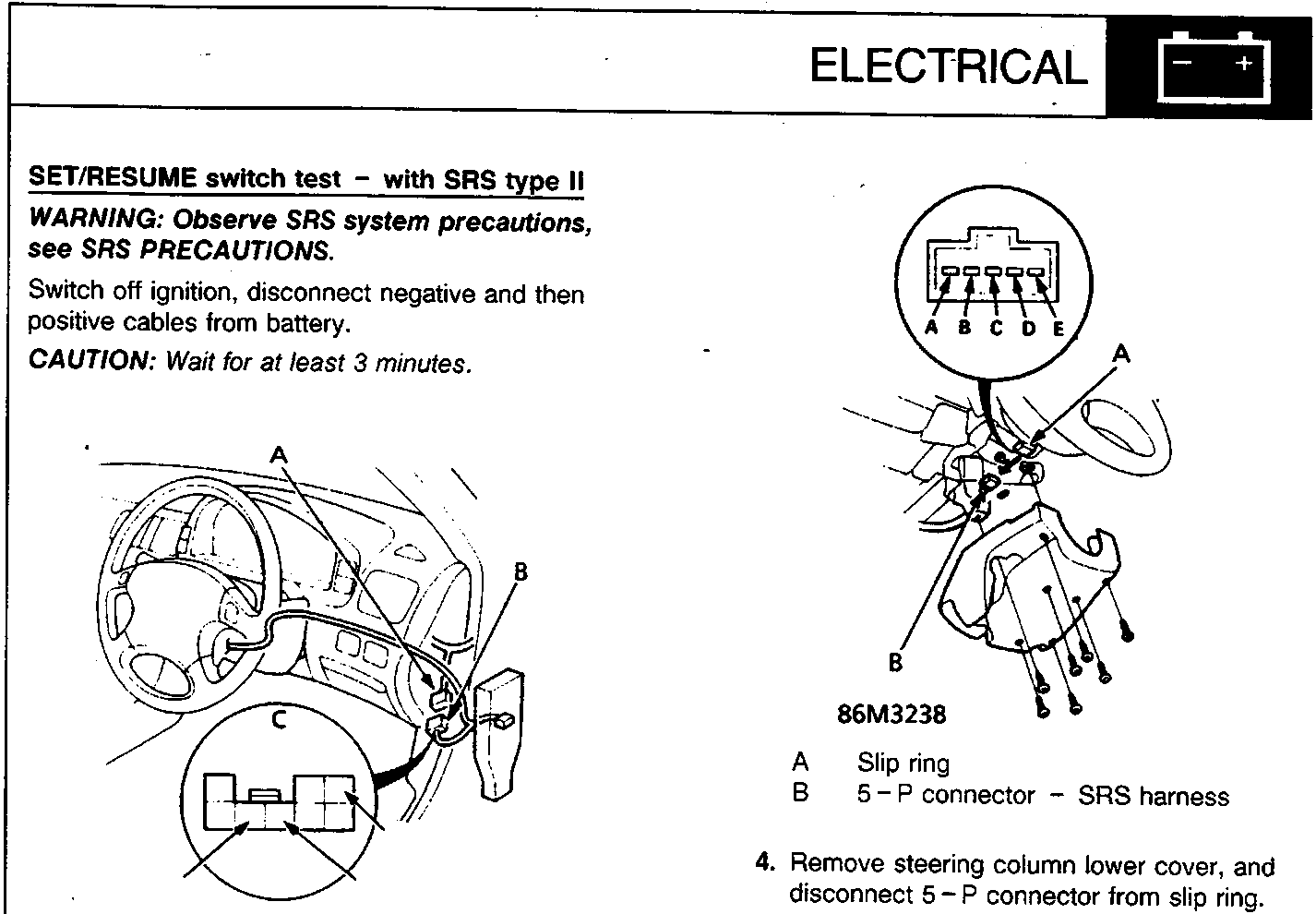

Diagram showing steering column components including the 8-P connector (A), 5-P connector (B), and a view from wire side (C) for figure 86M3237, and a slip ring (A) with 5-P connector (B) for figure 86M3238.

86M3237

A    8 – P connector – main harness
B    8 – P connector – SRS harness
C    View from wire side

  1. Remove dashboard lower cover.
  2. Disconnect 8 – P connector between main harness and SRS harness.

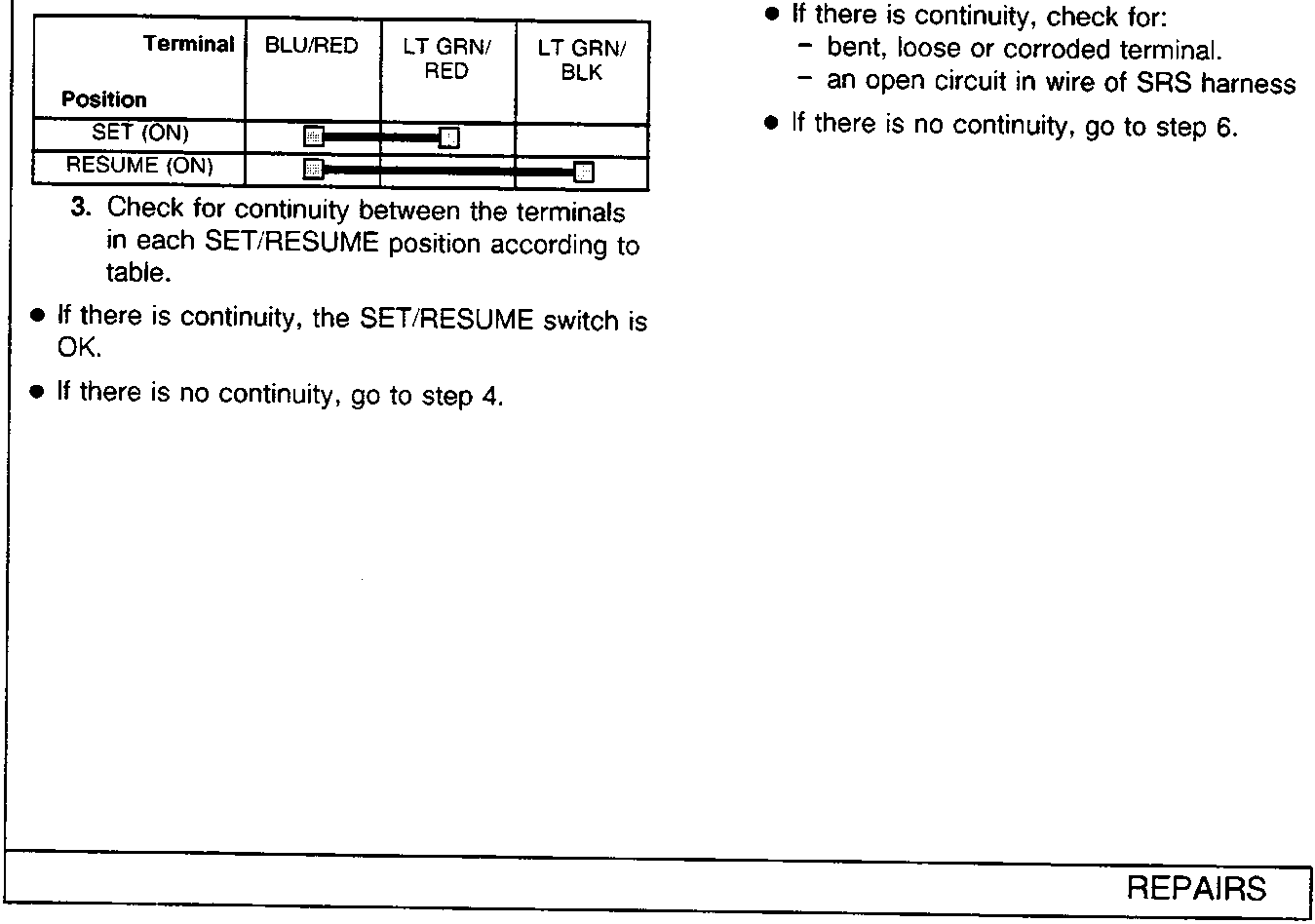

Table showing continuity check positions for terminals BLU/RED, LT GRN/RED, and LT GRN/BLK in SET (ON) and RESUME (ON) positions.
  1. Check for continuity between the terminals in each SET/RESUME position according to table.
  • If there is continuity, the SET/RESUME switch is OK.
  • If there is no continuity, go to step 4.

86M3238

A    Slip ring
B    5 – P connector – SRS harness

  1. Remove steering column lower cover, and disconnect 5 – P connector from slip ring.

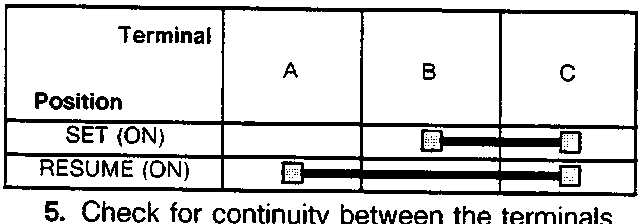

Table showing continuity check positions for terminals A, B, and C in SET (ON) and RESUME (ON) positions.
  1. Check for continuity between the terminals of the slip ring in each SET/RESUME position according to table.
  • If there is continuity, check for:
    – bent, loose or corroded terminal.
    – an open circuit in wire of SRS harness
  • If there is no continuity, go to step 6.
