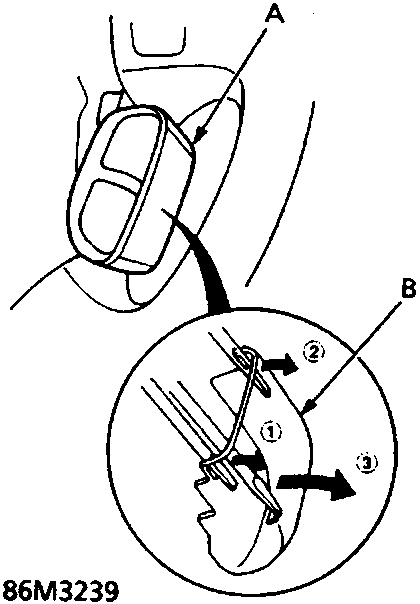

Diagram showing the removal sequence for the SET/RESUME switch cover, with callouts A and B and numbered steps 1, 2, 3 in a circular inset.
A   SET/RESUME switch B   SET/RESUME switch cover 6. Carefully remove SET/RESUME switch cover in sequence shown.

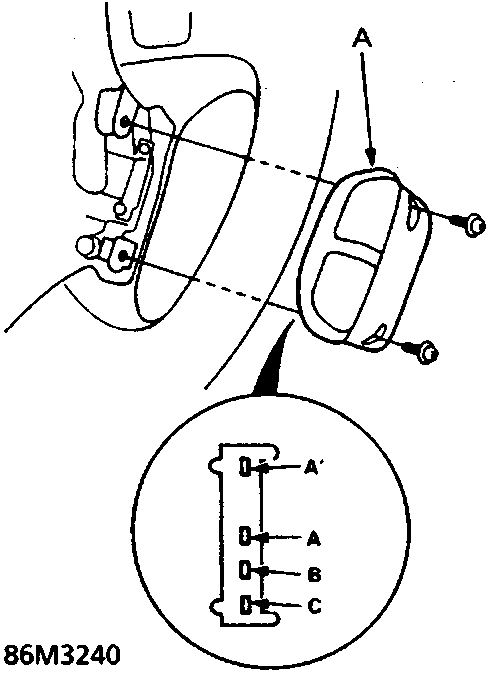

Diagram showing the removal of the SET/RESUME switch (A), with a circular inset detailing the terminal layout labeled A', A, B, C.
A   SET/RESUME switch 7. Remove 2 screws and the SET/RESUME switch.
Terminal A A' B C
Position OFF ■—■
SET (ON) ■—■—■—■—■ ■
RESUME (ON) ■—■—■—■—■ ■—■
8. Check for continuity between the terminals in each switch position according to table. ● If there is no continuity in one or more positions, replace switch. ● If continuity matches the table, check for: an open circuit in the SRS unit sub-harness. a faulty slip ring.
