18 · Electrical

Input Test (page 3 of 4)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
ElectricalInput Test · page 3 of 4

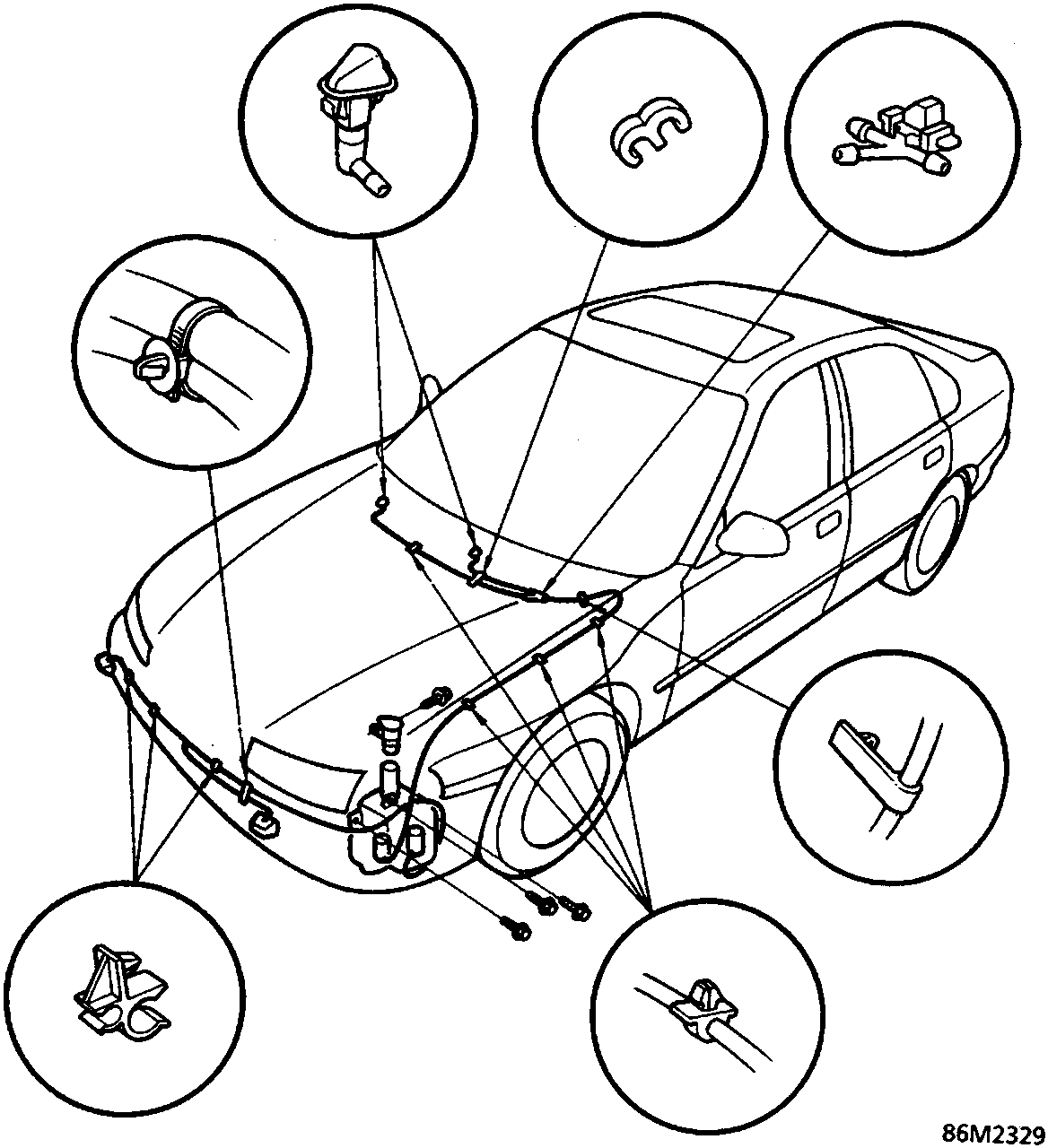

Diagram of the front vehicle area showing washer system components including filler neck, inner fender, hoses, connectors, reservoir, motor, and nozzles. Figure code 86M2329.
  1. Remove the washer filler neck.
  2. Remove the inner fender.
  3. Disconnect the hose and the 2 – P connectors from the washer motors.
  4. Remove the three mounting bolts and pull out the washer reservoir.
  5. Remove the washer motor from the washer reservoir.
  6. Remove the washer nozzles and washer hose.
  7. Install in the order of removal.

Note:

  • While installing the washer system, take care not to pinch any hoses. Install the hose clips firmly.
  • After installing, check/adjust the aim of the washer nozzles.
