Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition18 · Electrical
18 · Electrical

Power Mirror Replacement (page 3 of 3)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
ElectricalPower Mirror Replacement · page 3 of 3

Power Mirror Replacement (page 3 of 3) – diagram from the Electrical chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

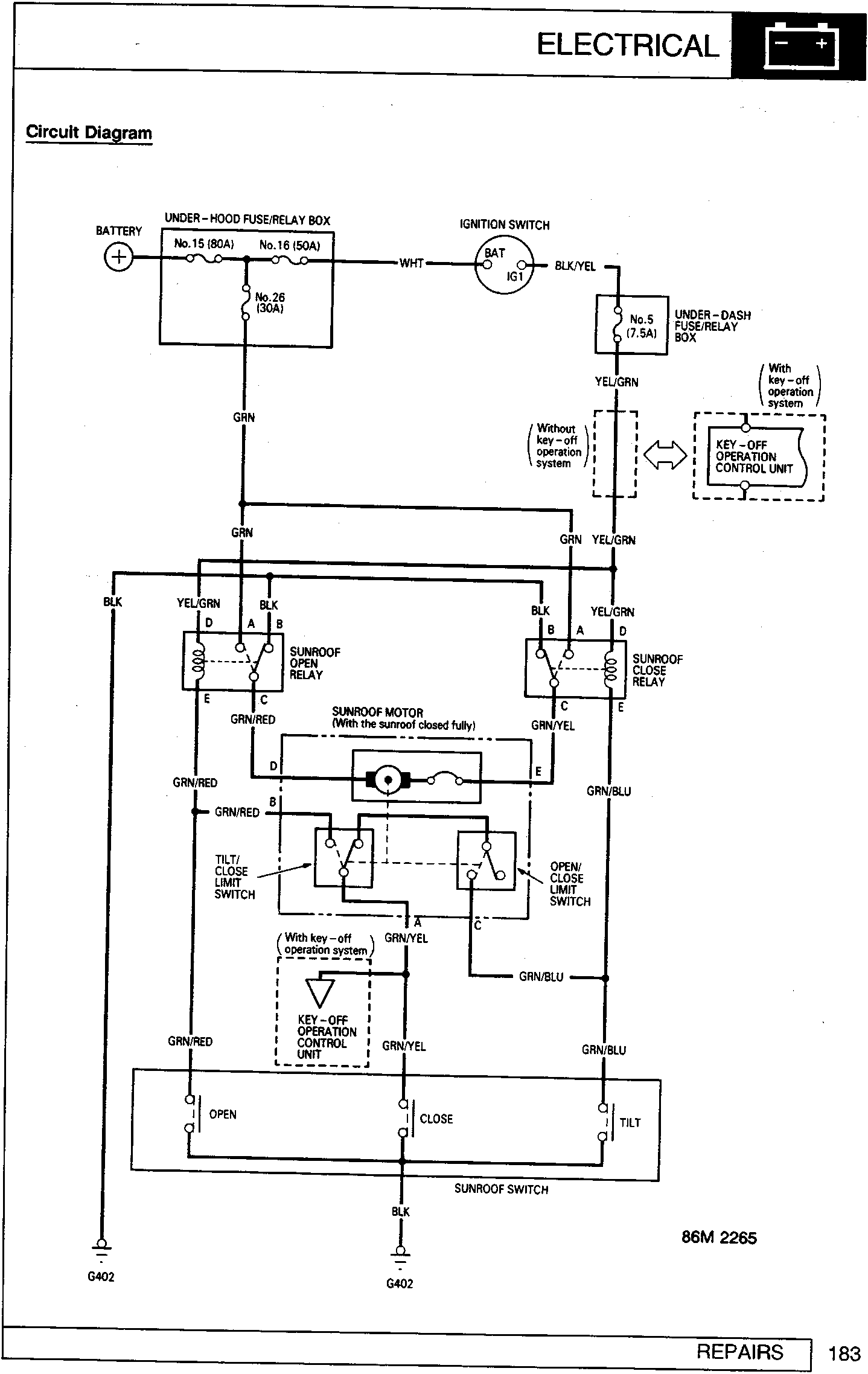

Electrical circuit diagram for the sunroof system showing connections between the battery, fuse/relay boxes, ignition switch, key-off operation control unit, sunroof open/close relays, sunroof motor, limit switches, and sunroof switch. Wire colors and terminal labels are indicated throughout the schematic.

86M 2265
