Replacement (page 2 of 5)

CAUTION:

• All SRS electrical wiring harnesses are covered with yellow outer insulation.
• Replace the entire affected SRS harness assembly if it has an open circuit or damaged wiring.
• Before disconnecting the SRS wiring harness, turn the ignition switch off, disconnect the negative and positive battery cables, and wait at least three minutes. see SUPPLEMENTARY RESTRAINT SYSTEM

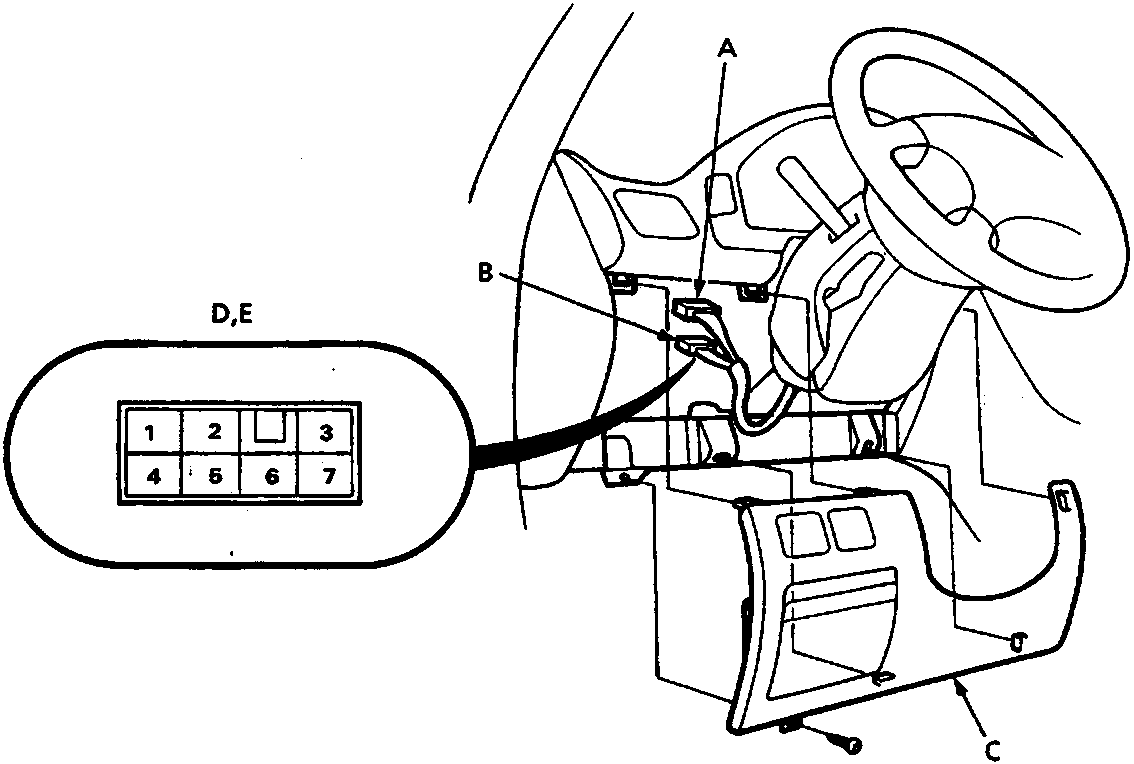

A     12–P connector
B     7–P connector
C     Dashboard lower cover

D     View from wire side
E     7–P connector

Note: LHD type is shown, RHD type is similar.

1. Remove the dashboard lower cover .
2. Disconnect the connectors from the main wire harness.
3. Check for continuity between the terminals of the 7–P connector in each switch position according to the table.
4. If there is no continuity, check the harness between the main wire harness and the switch assembly.
