CAUTION:

  • All SRS electrical wiring harnesses are covered with yellow outer insulation.
  • Replace the entire affected SRS harness assembly if it has an open circuit or damaged wiring.
  • Before disconnecting the SRS wiring harness, turn the ignition switch off, disconnect the negative and positive battery cables, and wait at least three minutes, see SUPPLEMENTARY RESTRAINT SYSTEM
  1. Remove the driver's side kick panel, see BODY
  2. Remove the indicator/hazard relay from the passenger compartment fuse/relay box.
  3. Inspect the relay and socket terminals to be sure they are all making good contact.
  • If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
  • If the terminals look OK, make the following input tests at the socket.
  • – If a test indicates a problem, find and correct the cause, then recheck the system.
  • – If all the input test prove OK, the indicator/hazard relay must be faulty; replace it.

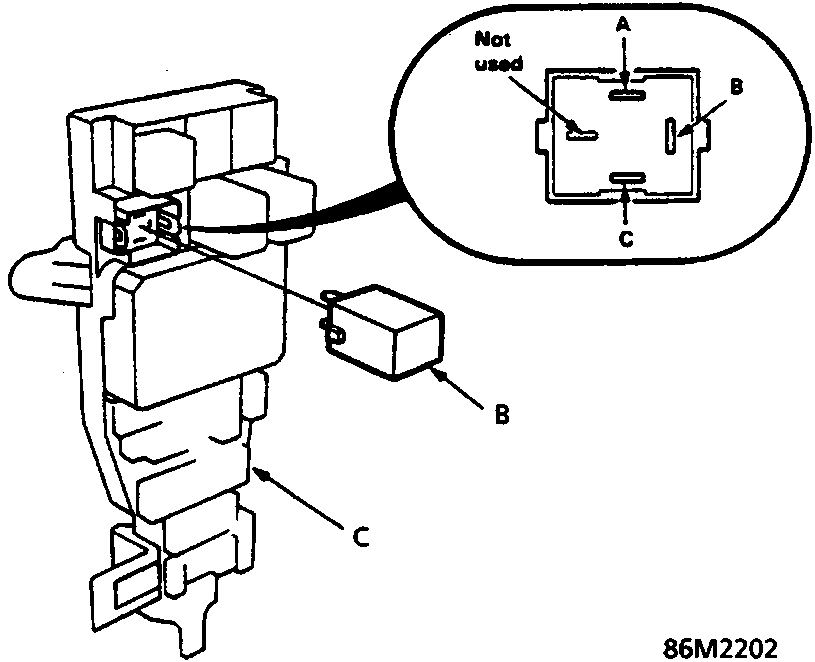

Diagram of the passenger compartment fuse relay box (C) showing the turn indicator/hazard relay (B) inserted. An inset circle labeled A shows the view from the terminal side of the socket, identifying terminals A, B, and C, with one position marked 'Not used'.

A     View from terminal side

B     Turn indicator/hazard relay

C     Passenger compartment fuse relay box
