Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition18 · Electrical
18 · Electrical

86M 2208 (page 3 of 3)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
Electrical86M 2208 · page 3 of 3

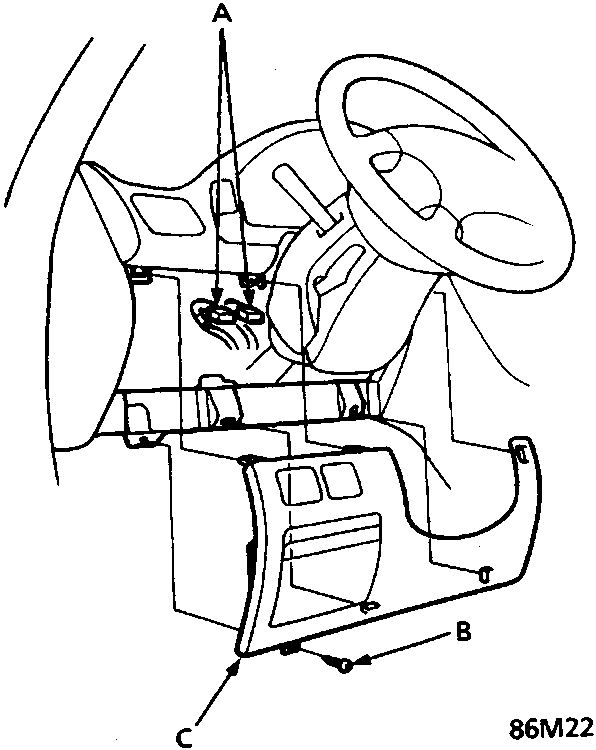

Diagram of the lower dashboard area showing connectors, screw, and lower cover location
  • A A Connector(s)
  • B B Screw
  • C C Dashboard lower cover
  1. Remove the screw and dashboard lower cover, then disconnect the connector(s) from the switch(es).

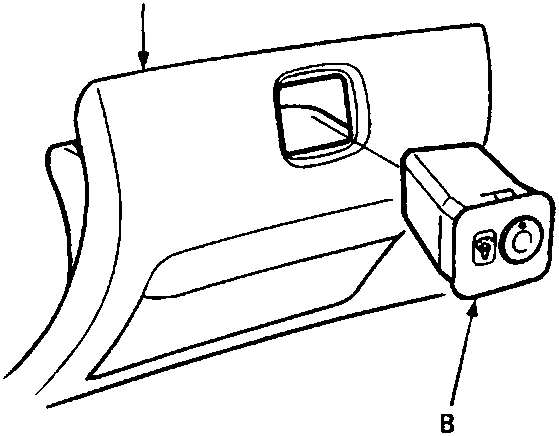

Diagram of the dashboard lower cover with dash lights brightness controller attached behind it
  • A A Dashboard lower cover
  • B B Dash lights brightness controller
  1. Push the controller out from behind the dashboard lower cover and replace it.
