Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition18 · Electrical
18 · Electrical

86M 2113 (page 4 of 4)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
Electrical86M 2113 · page 4 of 4

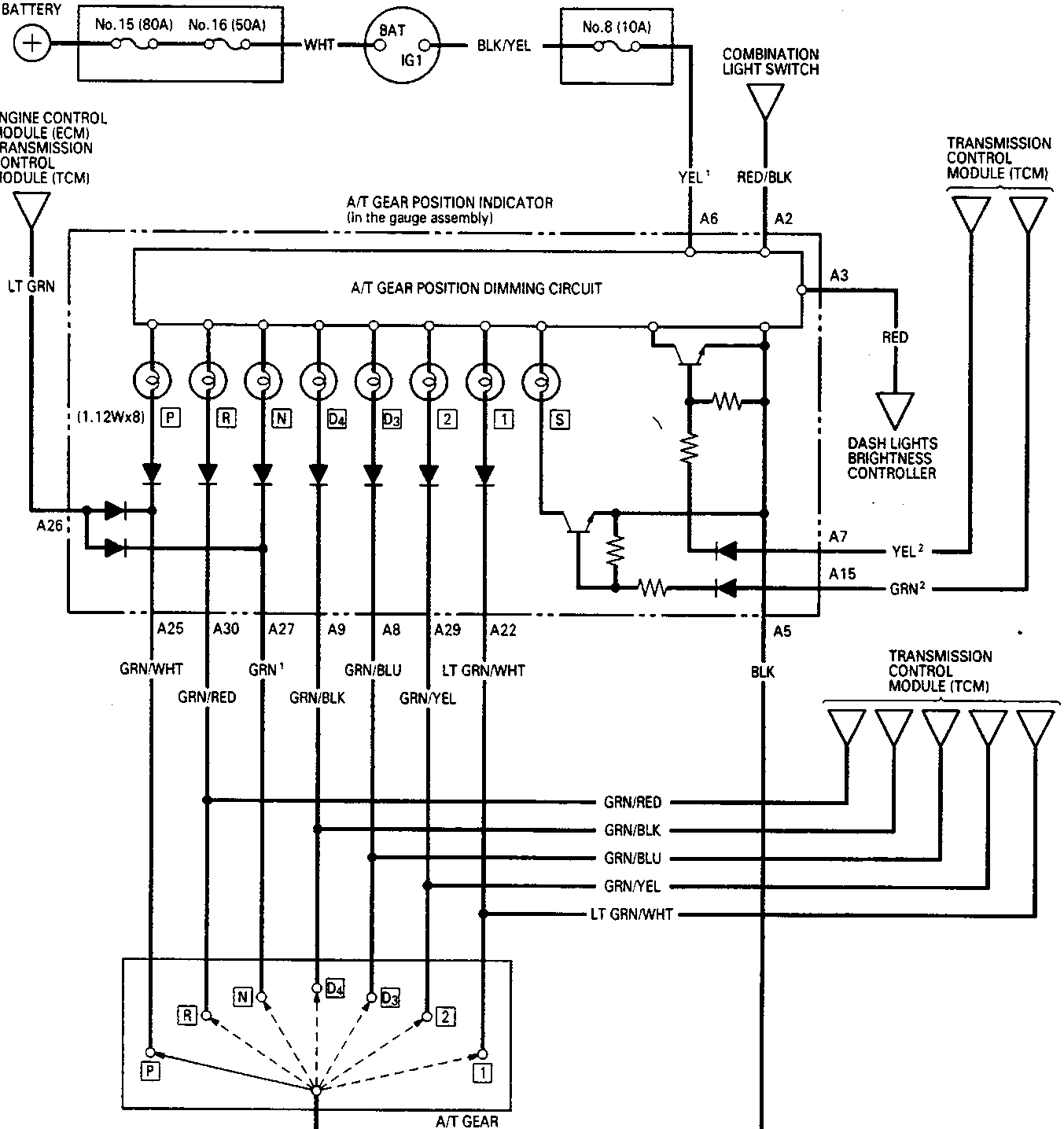

Electrical circuit diagram showing connections between battery, fuse/relay boxes, ignition switch, combination light switch, engine control module (ECM), transmission control module (TCM), A/T gear position indicator, dash lights brightness controller, and A/T gear position switch with wire color codes and connector pin numbers.

BATTERY
UNDER-HOOD FUSE/RELAY BOX
No.15 (80A) No.16 (50A)
WHT
IGNITION SWITCH
BAT IG1
BLK/YEL
UNDER-DASH FUSE/RELAY BOX
No.8 (10A)
COMBINATION LIGHT SWITCH
RED/BLK
ENGINE CONTROL MODULE (ECM)
TRANSMISSION CONTROL MODULE (TCM)
YEL1
A/T GEAR POSITION INDICATOR (in the gauge assembly)
A6 A2
LT GRN
A/T GEAR POSITION DIMMING CIRCUIT
A3
(1.12Wx8) P R N D4 D3 2 1 S
RED
DASH LIGHTS BRIGHTNESS CONTROLLER
A26
A7 YEL2
A15 GRN2
A25 A30 A27 A9 A8 A29 A22
GRN/WHT GRN/RED GRN1 GRN/BLK GRN/BLU GRN/YEL LT GRN/WHT
A5 BLK
TRANSMISSION CONTROL MODULE (TCM)
GRN/RED
GRN/BLK
GRN/BLU
GRN/YEL
LT GRN/WHT
R N D4 D3 2 1
P
A/T GEAR POSITION SWITCH
BLK
G401
G401
86M 2118
