18 · Electrical

Circuit Diagram (Without demister) (page 2 of 2)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
ElectricalCircuit Diagram (Without demister) · page 2 of 2

Circuit Diagram (Without demister) (page 2 of 2) – diagram from the Electrical chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

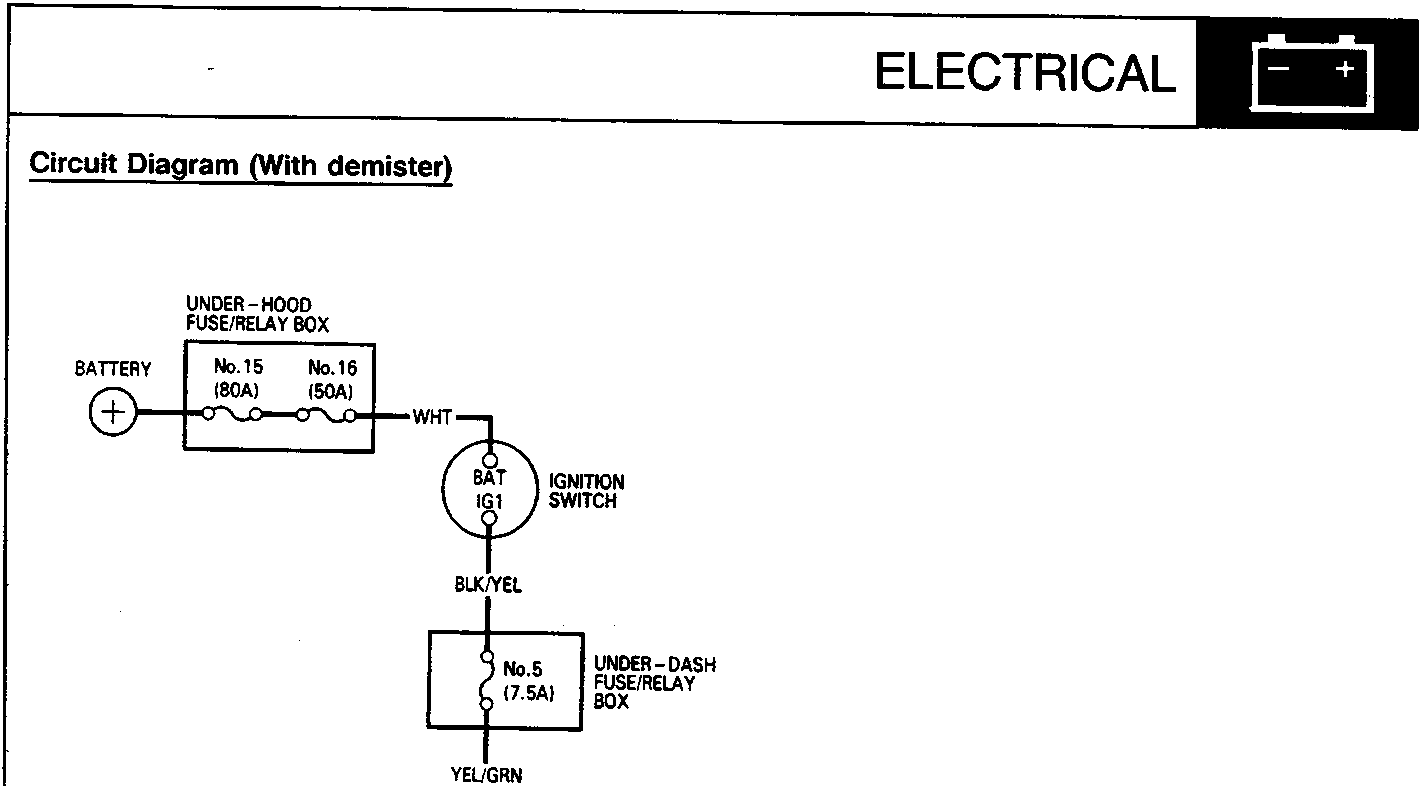

Electrical circuit diagram showing battery connected to under-hood fuse/relay box, ignition switch, and under-dash fuse/relay box with wire color codes.

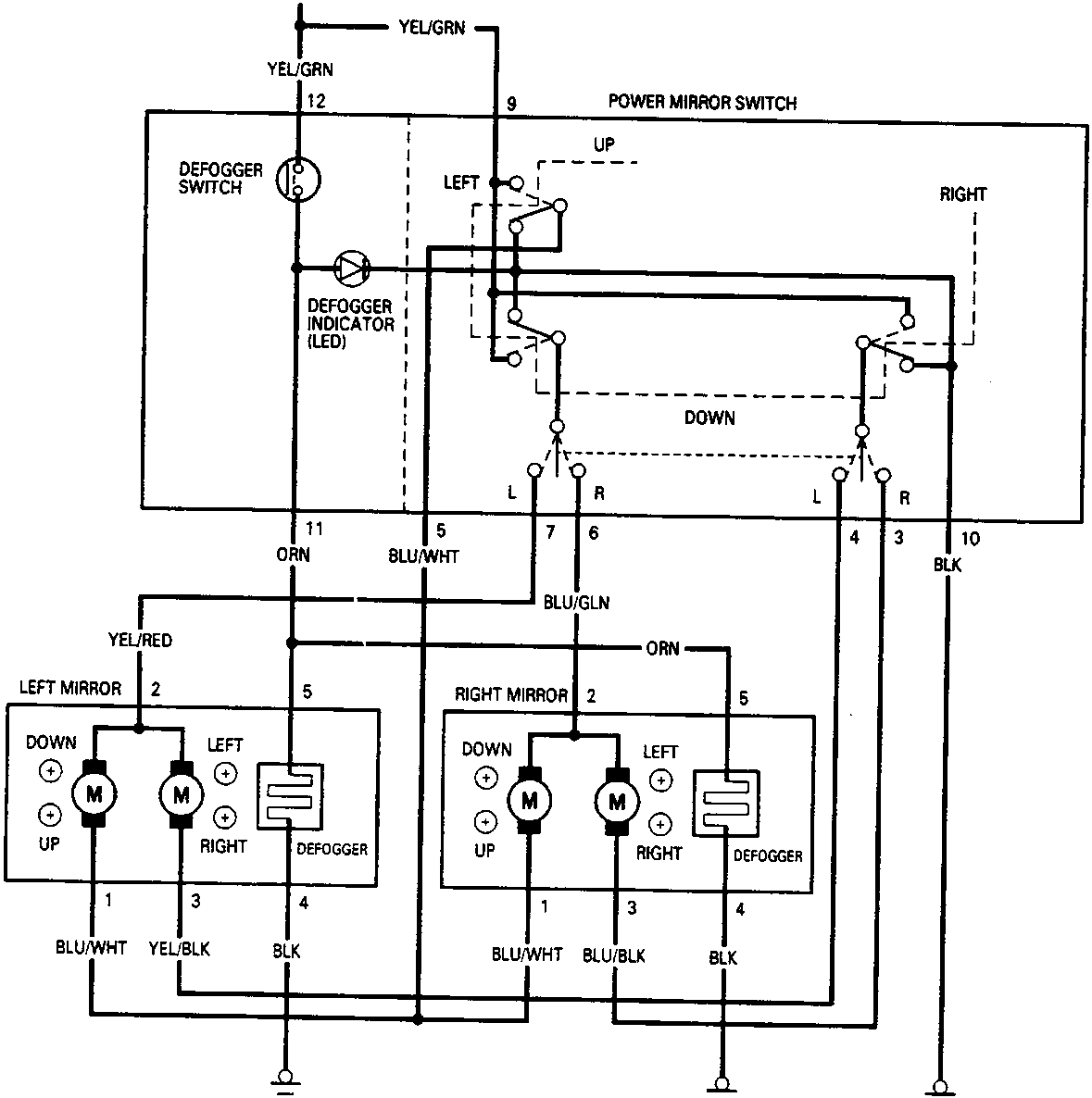

Detailed wiring diagram for power mirror switch, defogger switch, defogger indicator LED, left mirror, and right mirror with terminal numbers and wire colors.

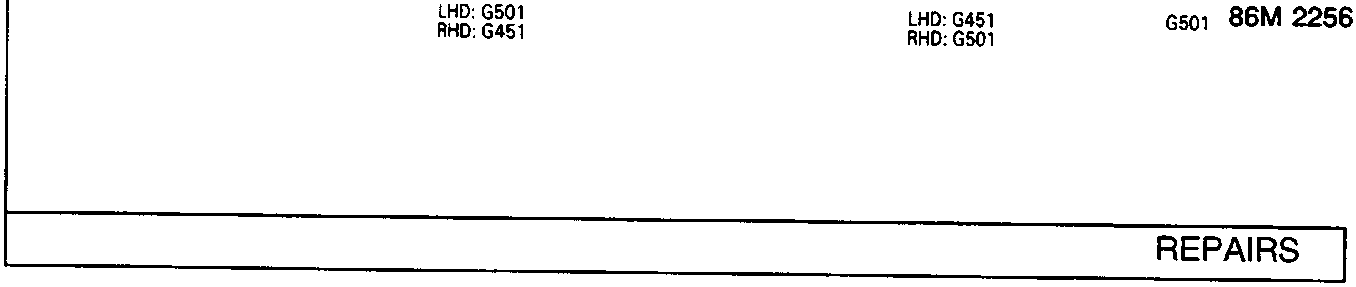

Document code and reference numbers G501 86M 2256 with LHD and RHD model variants.
