Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition18 · Electrical
18 · Electrical

Component Location – Engine Bay (page 2 of 2)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
ElectricalComponent Location – Engine Bay · page 2 of 2

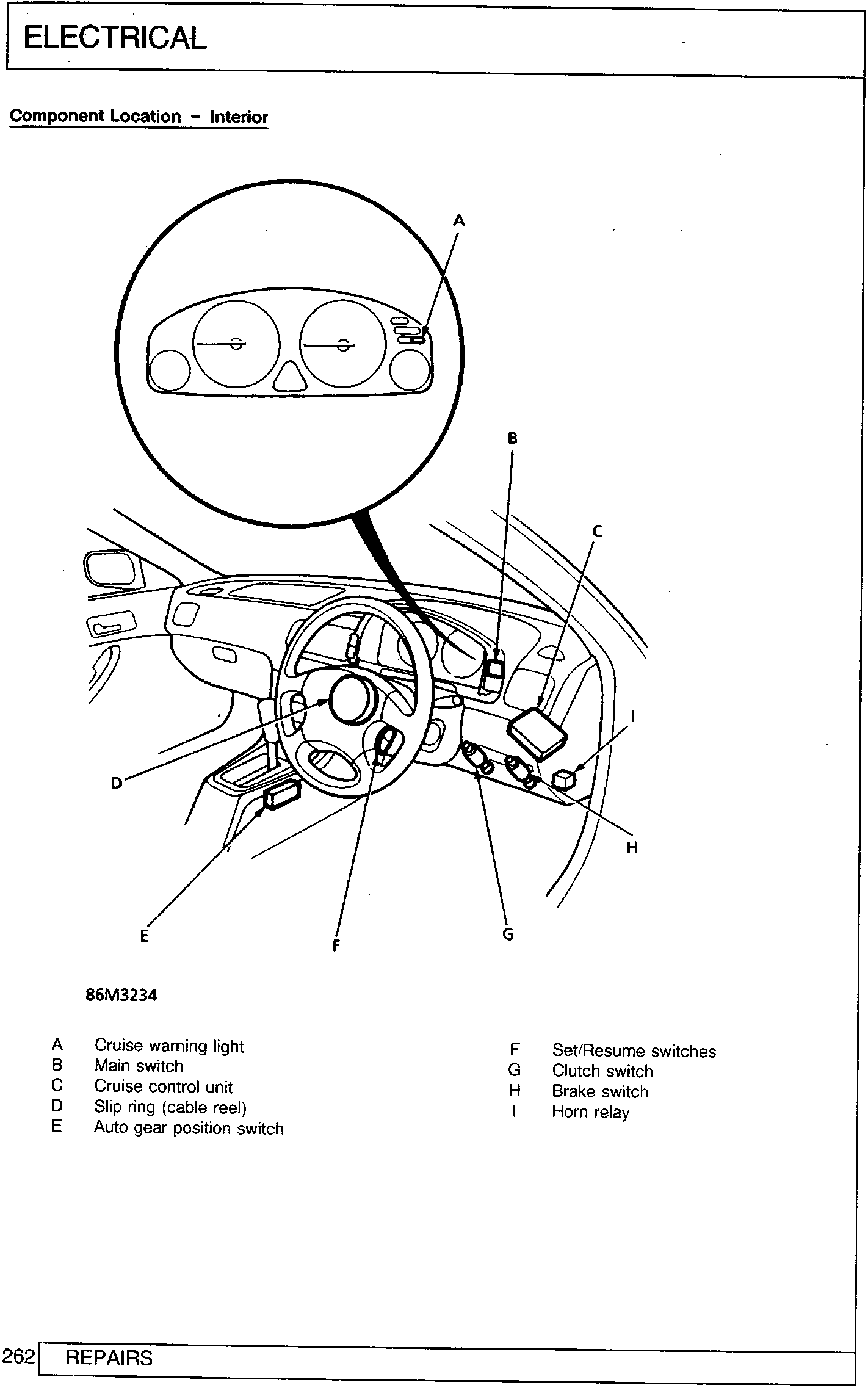

Diagram of the car interior showing component locations around the steering wheel and instrument cluster, with callout labels A through I.

86M3234

A Cruise warning light F Set/Resume switches
B Main switch G Clutch switch
C Cruise control unit H Brake switch
D Slip ring (cable reel) I Horn relay
E Auto gear position switch
