Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition18 · Electrical
18 · Electrical

Description (page 2 of 3)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
ElectricalDescription · page 2 of 3

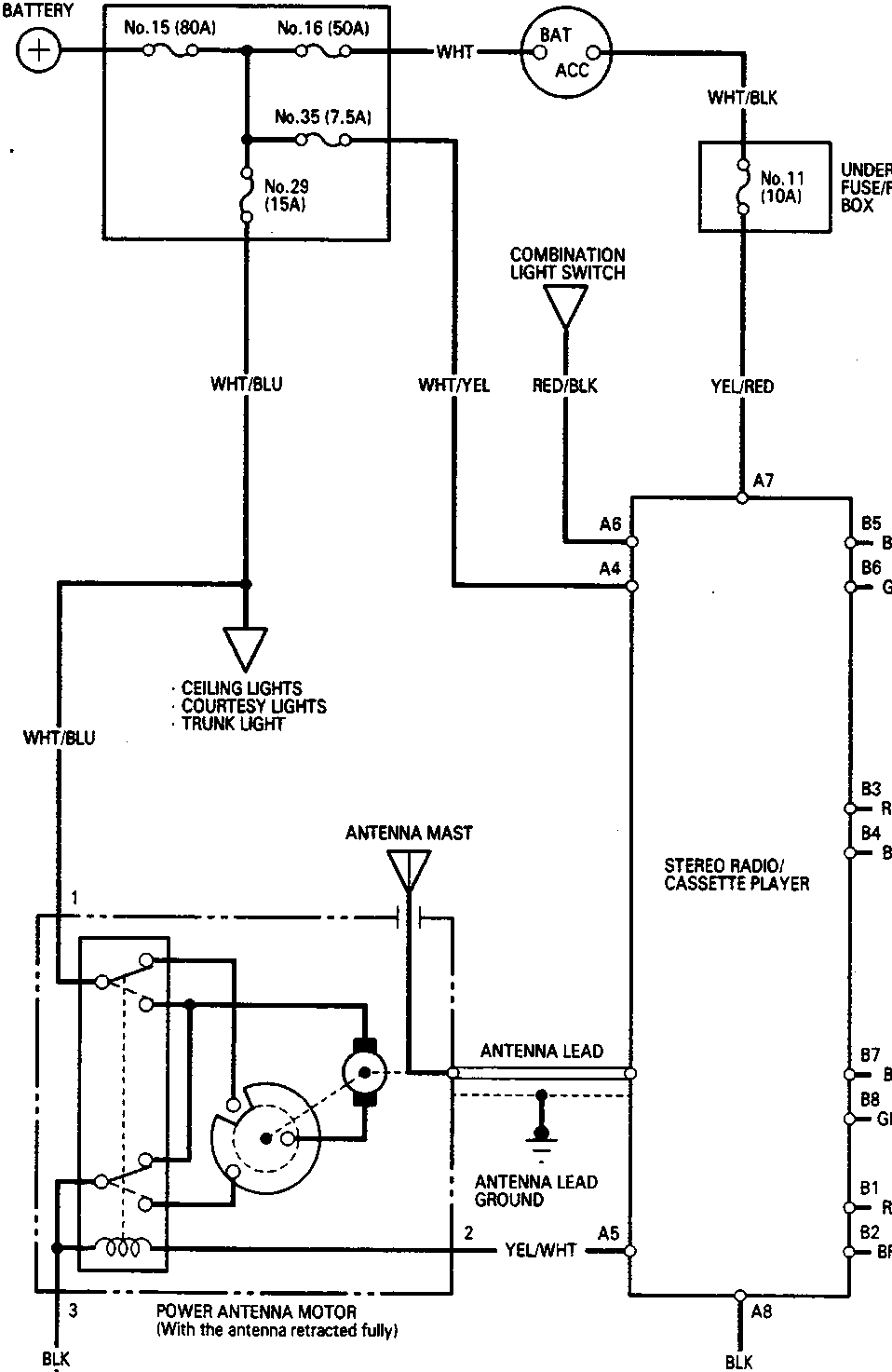

Electrical circuit diagram showing connections for battery, fuses, ignition switch, stereo radio/cassette player, power antenna motor, and six speakers with wire color codes.
  1. BATTERY
  2. POWER ANTENNA MOTOR
    (With the antenna retracted fully)
  3. ANTENNA MAST
  4. STEREO RADIO/CASSETTE PLAYER
  5. ANTENNA LEAD GROUND
  6. LEFT FRONT DOOR SPEAKER
  7. LEFT TWEETER
  8. RIGHT FRONT DOOR SPEAKER
  9. RIGHT TWEETER
  10. LEFT REAR SPEAKER
  11. RIGHT REAR SPEAKER

LHD: G501
RHD: G451

LHD: G401
RHD: G402

86M 2230
