Keyless Entry System (Without security alarm system) (page 2 of 3)

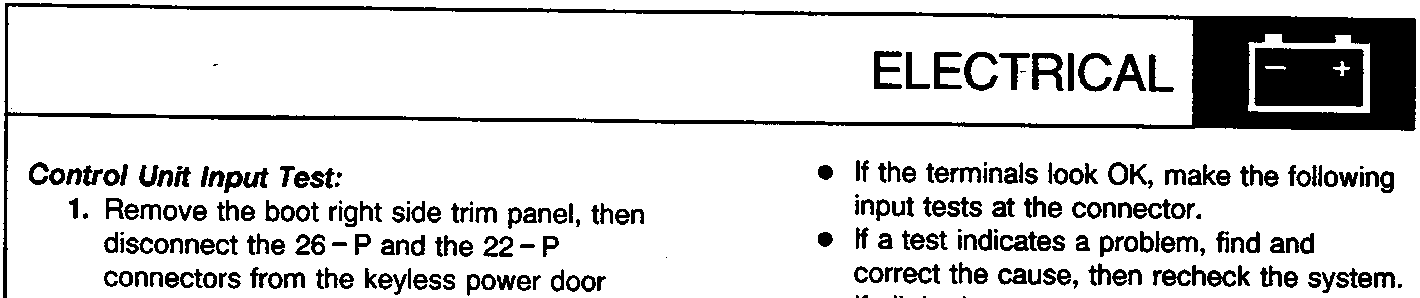

Control Unit Input Test:

1. Remove the boot right side trim panel, then disconnect the 26 – P and the 22 – P connectors from the keyless power door lock control unit.
2. Inspect the connector and the socket terminals to be sure they are all making good contact.
3. If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.

• If the terminals look OK, make the following input tests at the connector.
• If a test indicates a problem, find and correct the cause, then recheck the system.
• If all the input tests prove OK, the control unit may be faulty, replace it.

Note: Different wires with the same colour have been given a suffix number to distinguish them, (for example, GRN/WHT¹ and GRN/WHT³) are not the same.

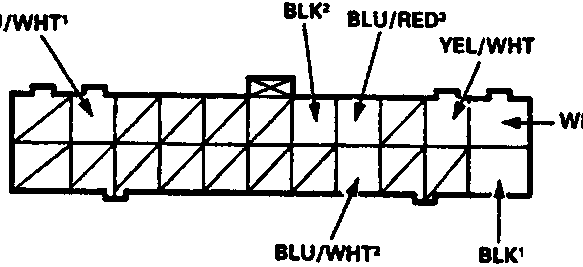

View from wire side

View from wire side
