ElectricalOne or both mirrors inoperative · page 2 of 2

Note: Be careful not to damage the door panel and armrest.

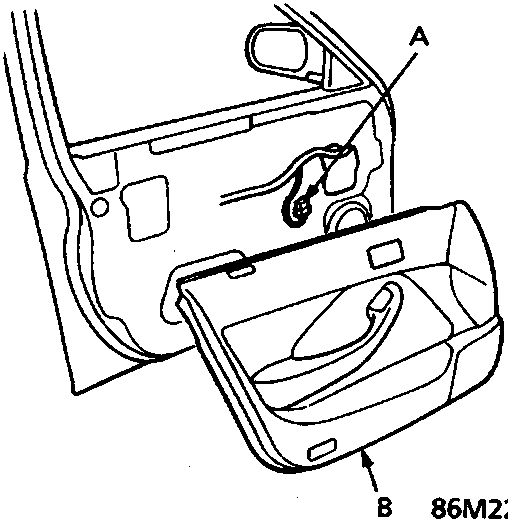

Diagram showing removal of door panel (B) and connector (A) from driver's door

A 10–P connector
B Door panel

  1. Remove the four screws and clips, then remove the door panel by pulling it upward and disconnect the 10–P connector.
  2. Remove the armrest from the driver’s door panel by removing the six screws.

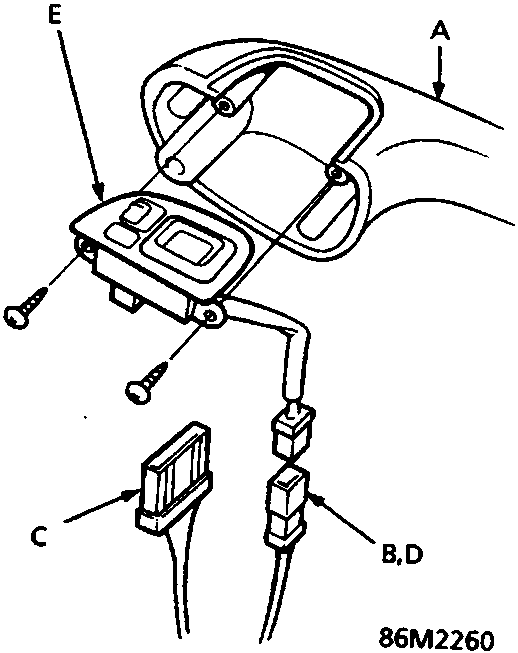

Diagram showing power mirror switch (E), armrest (A), connectors (B, C), and defogger option (D) on driver's door panel

A Armrest
B 2–P connector
C 10–P connector
D ( ) with defogger
E Power mirror switch

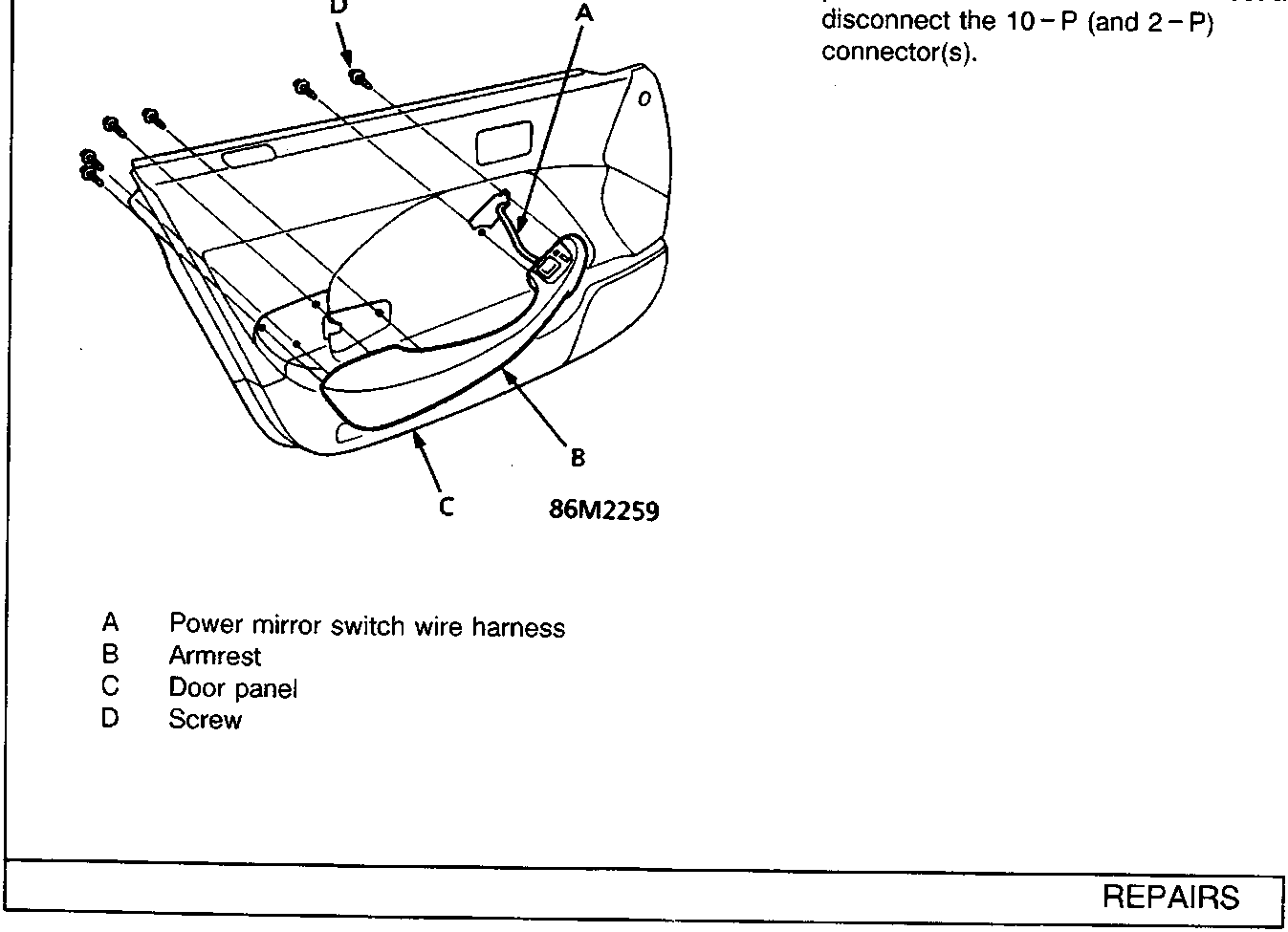

Diagram showing power mirror switch wire harness (A), armrest (B), door panel (C), and screw (D)

A Power mirror switch wire harness
B Armrest
C Door panel
D Screw

  1. Remove the two screws, then remove the power mirror switch from the armrest and disconnect the 10–P (and 2–P) connector(s).
