ElectricalOverrunning Clutch Check · page 2 of 2

Reassemble the starter in the reverse order of disassembly.

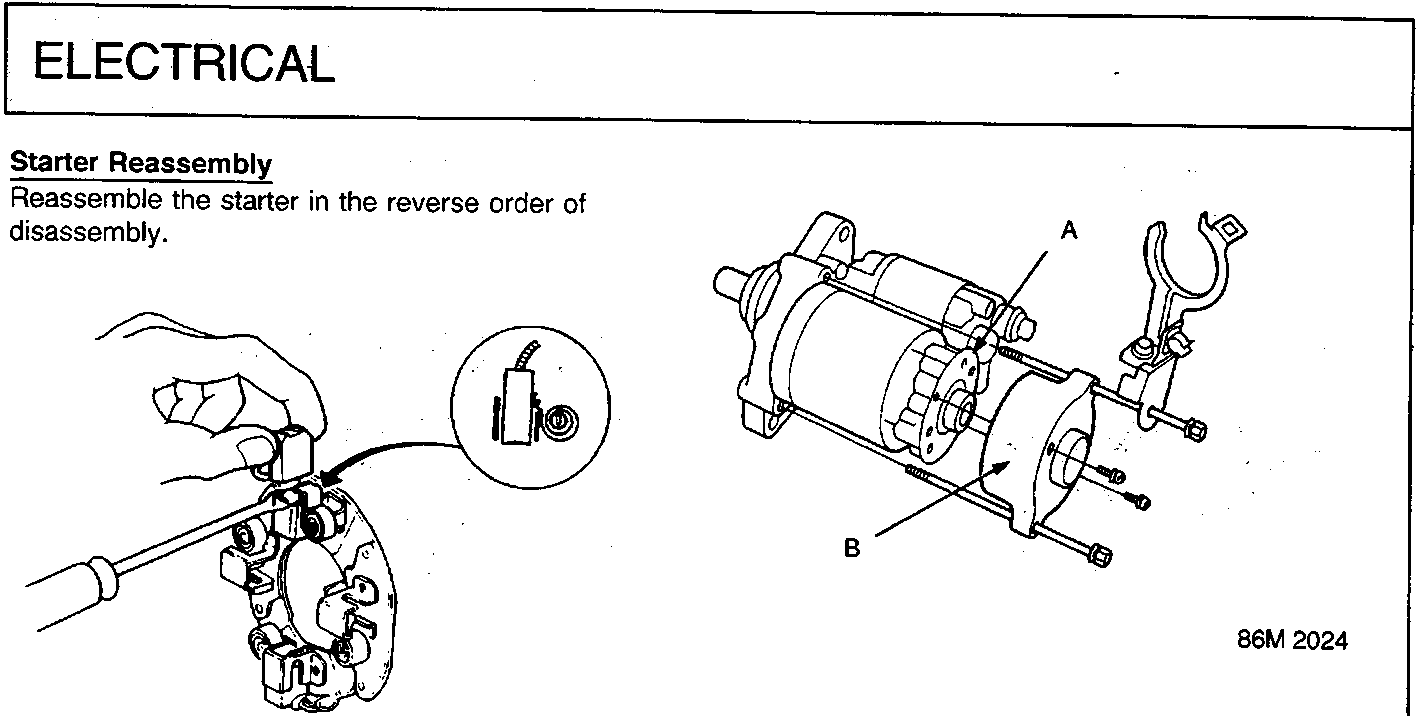

Exploded view of a starter motor showing the brush holder (A) and end cover (B), alongside an inset diagram of a brush being manipulated with a tool.
  1. Pry back each brush spring with a screwdriver, then position the brush about halfway out of its holder, and release the spring to hold it there.

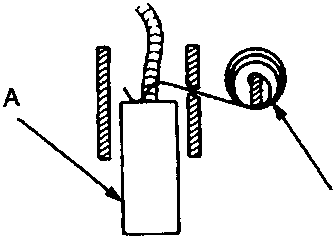

Diagram showing a brush (A) positioned between two brush springs (B), with a downward arrow indicating installation direction.
  1. Install the armature in the housing. Next pry back each brush spring again and push the brush down until it seats against the commutator, then release the spring against the end of the brush.
  2. Install the end cover on the brush holder.
