18 · Electrical

Alternator/Regulator Operation Test (page 2 of 3)

Make: Rover
Model: 600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section: Repairs

‹ Prev Alternator/Regulator Operation Test Next ›

ElectricalAlternator/Regulator Operation Test · page 2 of 3

Alternator/Regulator Operation Test (page 2 of 3) – diagram from the Electrical chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

Note: Because an overall check is necessary to avoid misleading conclusions, test the alternator components in the order described below.

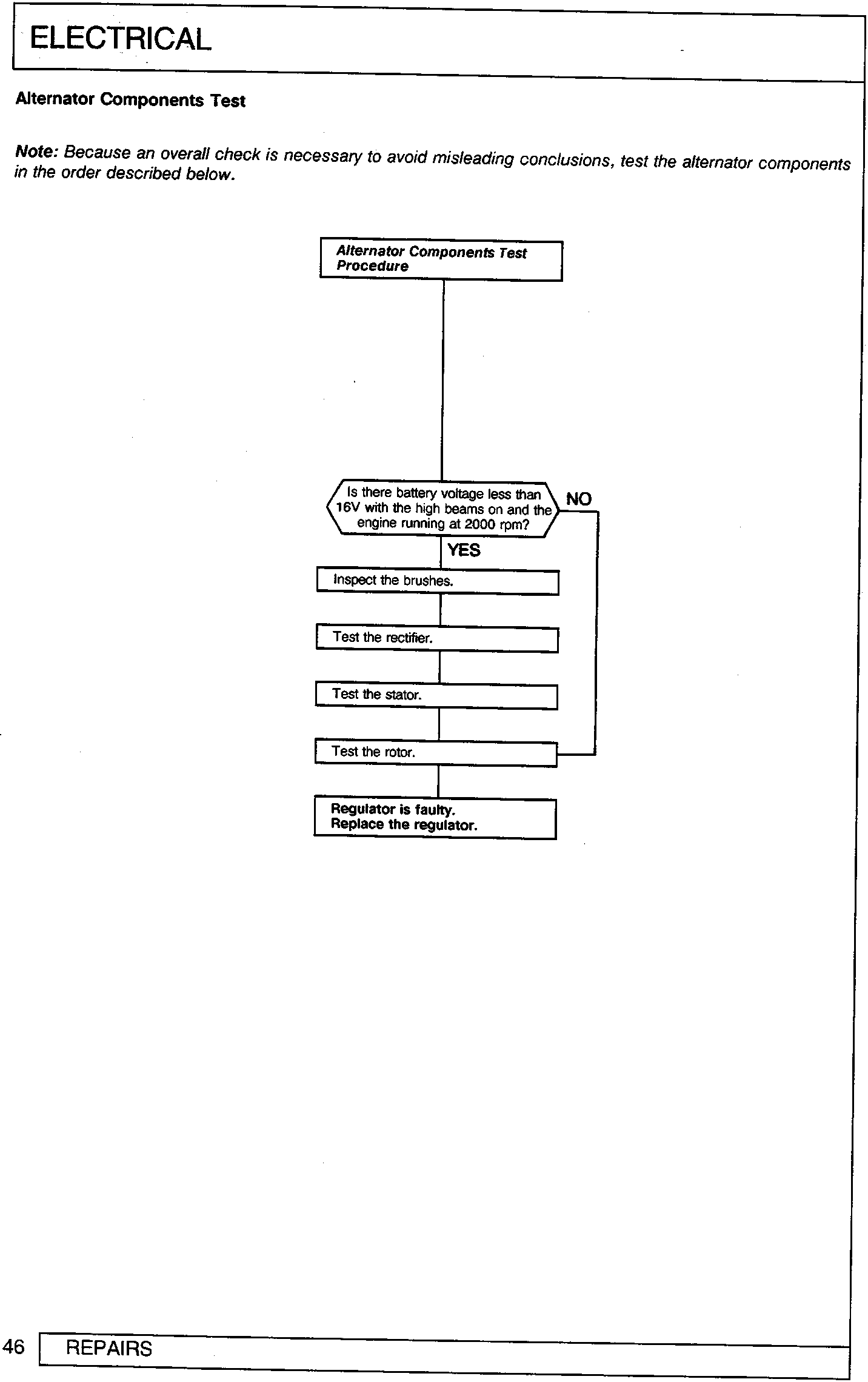

Flowchart diagram titled 'Alternator Components Test Procedure'. A decision box asks 'Is there battery voltage less than 16V with the high beams on and the engine running at 2000 rpm?'. The YES path leads sequentially through boxes: 'Inspect the brushes.', 'Test the rectifier.', 'Test the stator.', 'Test the rotor.'. The NO path connects directly to the final box. All paths lead to a final box: 'Regulator is faulty. Replace the regulator.'
