Dash lights brightness controller (page 2 of 9)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
ElectricalDash lights brightness controller · page 2 of 9

Dash lights brightness controller (page 2 of 9) – diagram from the Electrical chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

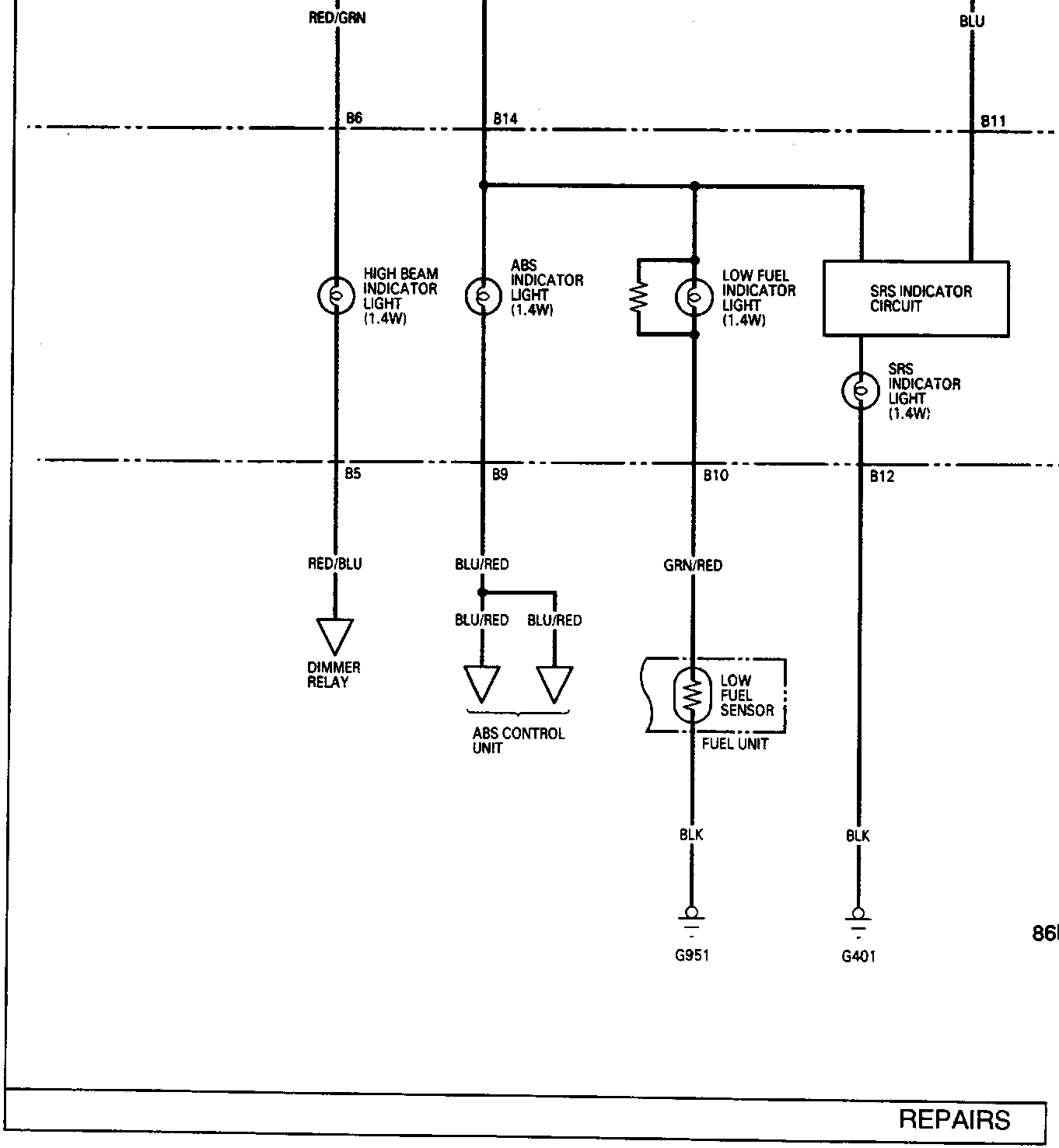

Electrical wiring diagram showing connections for High Beam Indicator Light, ABS Indicator Light, Low Fuel Indicator Light, SRS Indicator Circuit, Dimmer Relay, ABS Control Unit, and Fuel Unit with wire colors and connector codes.
