18 · Electrical

Dash lights brightness controller (page 7 of 9)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
ElectricalDash lights brightness controller · page 7 of 9

CAUTION:

  • All SRS electrical wiring harnesses are covered with yellow outer insulation.
  • Replace the entire affected SRS harness assembly if it has an open circuit or damaged wiring.
  • Before disconnecting the SRS wiring harness, turn the ignition switch off, disconnect the negative and positive battery cables, and wait at least three minutes, see SUPPLEMENTARY RESTRAINT SYSTEM

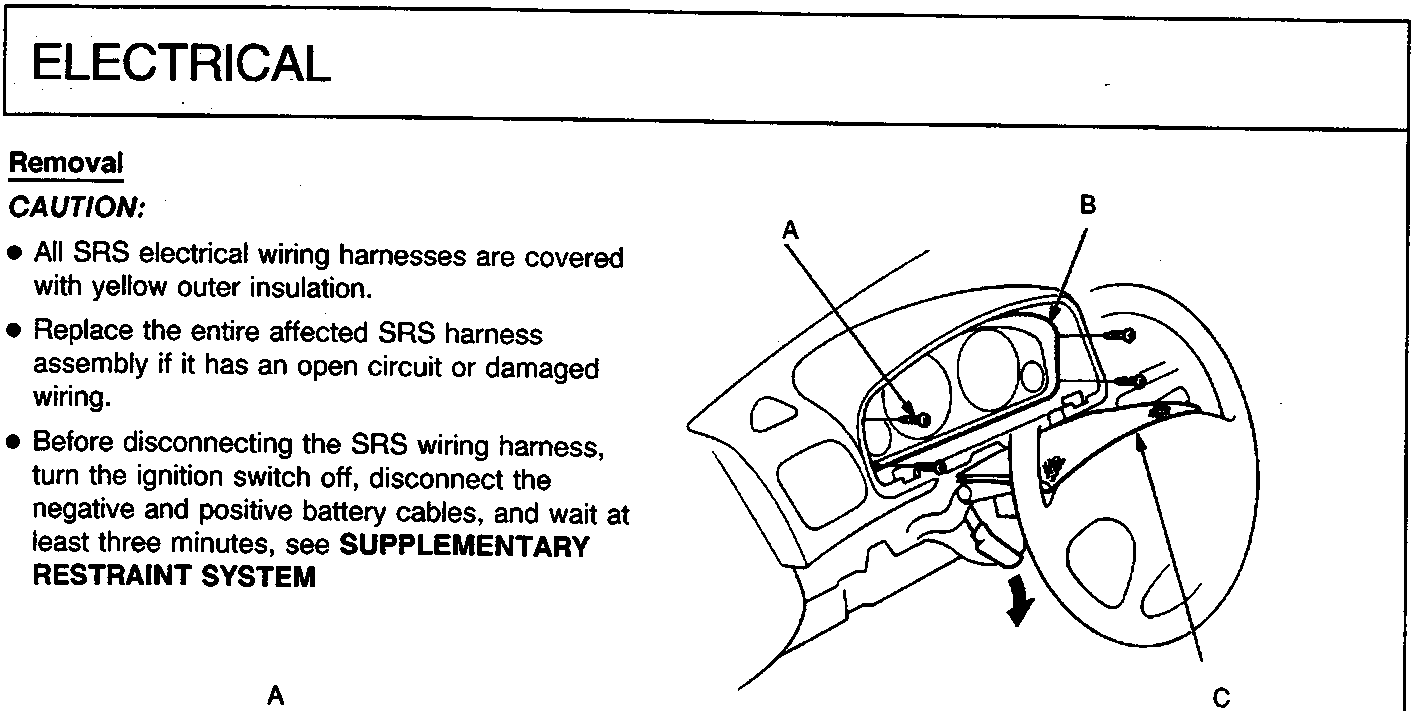

Diagram showing the instrument panel area with callouts A, B, and C indicating components near the steering column.

86M 2096

  • A Mounting screw
  • B Gauge assembly
  • C Protective cloth
  1. Remove the four mounting screws and spread a protective cloth on the steering column.
  2. Tilt the steering wheel down with the tilt adjustment lever.

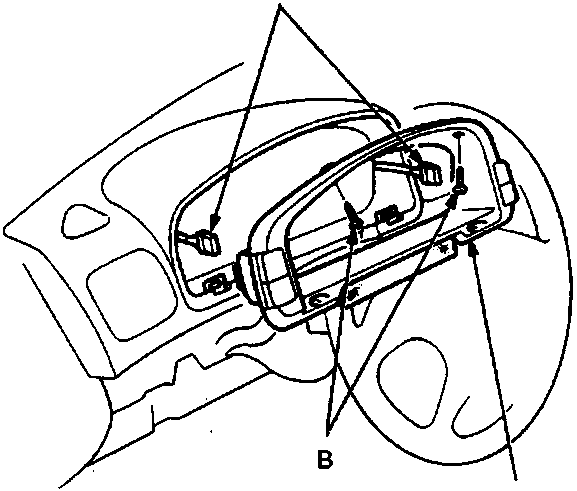

Diagram showing the instrument cluster with callout A pointing to mounting screws and callout C pointing to a protective cloth.

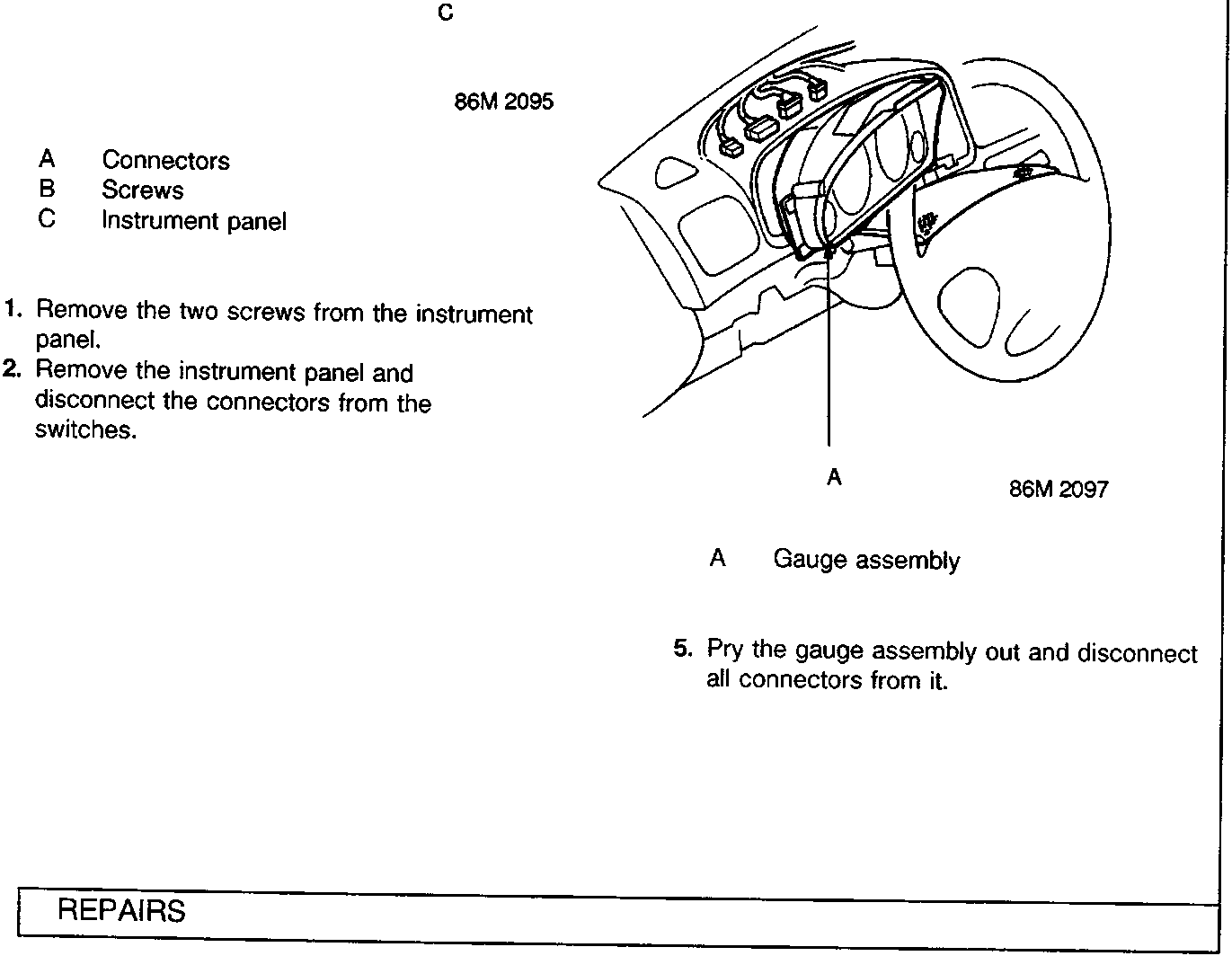

Diagram showing the gauge assembly being removed from the instrument panel with callout A pointing to the assembly.

86M 2095

  • A Connectors
  • B Screws
  • C Instrument panel
  1. Remove the two screws from the instrument panel.
  2. Remove the instrument panel and disconnect the connectors from the switches.

86M 2097

  • A Gauge assembly
  1. Pry the gauge assembly out and disconnect all connectors from it.
