Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition18 · Electrical
18 · Electrical

Dash lights brightness controller (page 8 of 9)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
ElectricalDash lights brightness controller · page 8 of 9

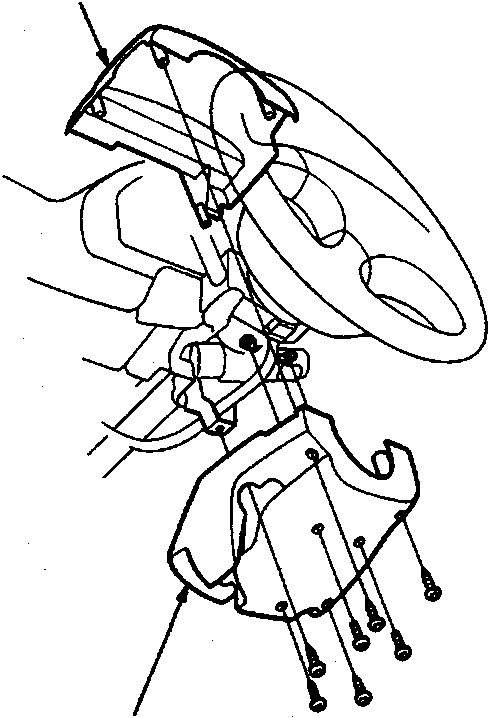

Diagram of steering column showing upper and lower column covers with callout labels A and B

86M 2098

  1. Upper column cover
  2. Lower column cover
  3. If necessary, remove the steering column covers.

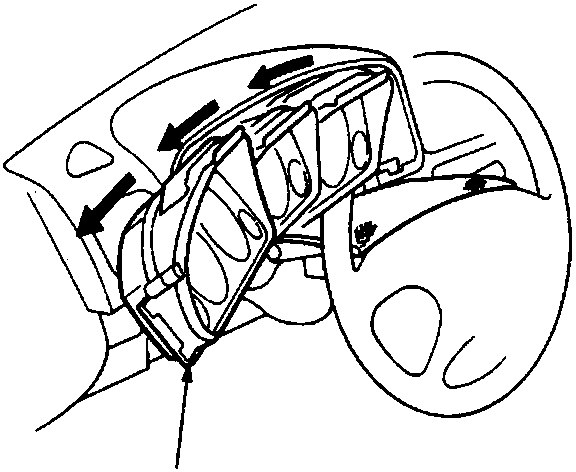

Diagram of instrument cluster area showing gauge assembly being removed with arrows indicating direction and callout label A

A

86M 2099

  1. Gauge assembly
  2. Carefully remove the gauge assembly.
  3. Install in the reverse order of removal.
